Ç° ¸ñ ½Ã±×³ÎÇÁ·Î¼¼¼­

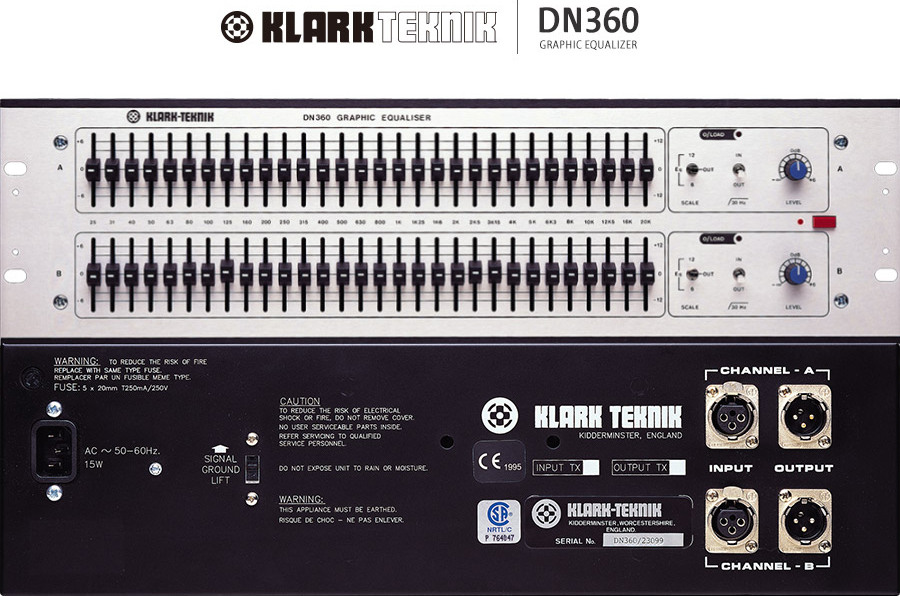

¸ð µ¨ DN360 (KNARK-TEKNIC) EQ
¼ö ·®
°³
ÆǸŠ°¡´ÉÁö¿ª Àü±¹
ÆǸŰ¡ 350,000¿ø
ÃÑ ÆǸŰ¡ 350,000¿ø
»ó¼¼Á¤º¸
Dual Channel 30 Band 1/3 Octave Graphic Equaliser


Input Two
Type Electronically balanced (pin 3 hot)
Impedance (ohms)
Balanced 20k
Unbalanced 10k

Output Two
Type Unbalanced (pin 3 hot)
Min. load impedance 600 (ohms)
Source impedance <60 (ohms)
Max. level +22dBu

Performance
Frequency response
(20Hz-20kHz) Eq out +/- 0.5dB
Eq in +/- 0.5dB
Distortion (@ + 18dBu) <0.01% @ 1kHz
Equivalent input noise
(20Hz-20kHz unweighted) <-90dBu
Channel Seperation >75dB @ 1KHz
Overload indicator +19dBu
Gain -infinity to +6dB

Filters
Type MELT**
Centre frequencies 2x30
ISO 25Hz-20kHz 1/3 octave
Tolerance +/- 5%
Maximum boost/cut +/- 6/12dB
Subsonic filter 18dB/octave - 3dB @ 30Hz

Power Requirements
Voltage 110/120/220/240V 50/60Hz
Consumption <15VA

Weight
Nett 4.5kg
Shipping 7kg

Dimensions
Width 482mm (19 inch)
Depth 205mm (8 inch)
Height 133mm (5.25 inch)
